创建工作流应用
配置文件
yaml配置文件
# 开发环境配置
server:
# 服务器的HTTP端口，默认为8080
port: 8081
servlet:
# 应用的访问路径
context-path: /liu
tomcat:
# tomcat的URI编码
uri-encoding: UTF-8
# 连接数满后的排队数，默认为100
accept-count: 1000
threads:
# tomcat最大线程数，默认为200
max: 800
# Tomcat启动初始化的线程数，默认值10
min-spare: 100
# 日志配置
logging:
level:
com.demo: debug
org.springframework: warn
# Spring配置
spring:
# 文件上传
servlet:
multipart:
# 单个文件大小
max-file-size: 10MB
# 设置总上传的文件大小
max-request-size: 20MB
datasource:
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://127.0.0.1:3306/flowable67?useUnicode=true&characterEncoding=utf8&tinyInt1isBit=false&useSSL=false&serverTimezone=GMT&nullCatalogMeansCurrent=true
username: flowable
password: flowable@Dw
debug: true
flowable:
process-definition-location-prefix: classpath*:/bpmn/
pom.xml配置文件
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>org.example</groupId>
<artifactId>dachengDemo</artifactId>
<version>1.0-SNAPSHOT</version>
<properties>
<maven.compiler.source>8</maven.compiler.source>
<maven.compiler.target>8</maven.compiler.target>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<java.version>1.8</java.version>
<hutool.version>5.8.26</hutool.version>
<flowable.version>6.7.2</flowable.version>
<skipTest>true</skipTest>
</properties>
<dependencyManagement>
<dependencies>
<!-- SpringBoot的依赖配置-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-dependencies</artifactId>
<version>2.5.15</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>${hutool.version}</version>
</dependency>
<dependency>
<groupId>org.flowable</groupId>
<artifactId>flowable-engine</artifactId>
<version>${flowable.version}</version>
</dependency>
<dependency>
<groupId>org.flowable</groupId>
<artifactId>flowable-spring-boot-starter-process</artifactId>
<version>${flowable.version}</version>
</dependency>
</dependencies>
</dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-aop</artifactId>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
</dependency>
<dependency>
<groupId>org.flowable</groupId>
<artifactId>flowable-engine</artifactId>
</dependency>
<dependency>
<groupId>org.flowable</groupId>
<artifactId>flowable-spring-boot-starter-process</artifactId>
</dependency>
<!-- mysql驱动 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
</dependency>
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>utf-8</encoding>
<compilerArgs>
<compilerArg>-parameters</compilerArg>
</compilerArgs>
</configuration>
</plugin>
</plugins>
</build>
</project>工作流文件
基于BPMN2.0标准的流程文件
<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:flowable="http://flowable.org/bpmn"
xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC"
xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"
typeLanguage="http://www.w3.org/2001/XMLSchema"
expressionLanguage="http://www.w3.org/1999/XPath"
targetNamespace="http://www.flowable.org/processdef"
exporter="Flowable Open Source Modeler" exporterVersion="6.7.2">
<process id="RequestLeaveApply" name="请事假审批流程" isExecutable="true">
<startEvent id="start" name="开始" flowable:formFieldValidation="true"></startEvent>
<userTask id="initer" name="发起申请" flowable:assignee="${initRequest}" flowable:formFieldValidation="true">
<extensionElements>
<modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete>
</extensionElements>
</userTask>
<userTask id="deptPass" name="部门领导" flowable:candidateGroups="a" flowable:formFieldValidation="true"></userTask>
<exclusiveGateway id="judgeDay" name="是否大于一天"></exclusiveGateway>
<userTask id="leaderPass" name="老板" flowable:candidateGroups="b" flowable:formFieldValidation="true"></userTask>
<endEvent id="end" name="结束"></endEvent>
<sequenceFlow id="judgeDayLess" name="小于一天" sourceRef="judgeDay" targetRef="end">
<conditionExpression xsi:type="tFormalExpression"><![CDATA[${applyDay<=1}]]></conditionExpression>
</sequenceFlow>
<sequenceFlow id="deptPassTrue" name="部门通过" sourceRef="deptPass" targetRef="judgeDay">
<conditionExpression xsi:type="tFormalExpression"><![CDATA[${deptPass==true}]]></conditionExpression>
</sequenceFlow>
<sequenceFlow id="startLine" name="开始流程" sourceRef="start" targetRef="initer"></sequenceFlow>
<sequenceFlow id="submit" name="申请提交" sourceRef="initer" targetRef="deptPass"></sequenceFlow>
<sequenceFlow id="deptPassFalse" name="部门驳回" sourceRef="deptPass" targetRef="initer">
<conditionExpression xsi:type="tFormalExpression"><![CDATA[${deptPass==false}]]></conditionExpression>
</sequenceFlow>
<sequenceFlow id="leaderPassFalse" name="老板驳回" sourceRef="leaderPass" targetRef="initer">
<conditionExpression xsi:type="tFormalExpression"><![CDATA[${leaderPass==false}]]></conditionExpression>
</sequenceFlow>
<sequenceFlow id="leaderPassTrue" name="老板通过" sourceRef="leaderPass" targetRef="end">
<conditionExpression xsi:type="tFormalExpression"><![CDATA[${leaderPass==true}]]></conditionExpression>
</sequenceFlow>
<sequenceFlow id="judgeDayThan" name="大于一天" sourceRef="judgeDay" targetRef="leaderPass">
<extensionElements>
<flowable:executionListener event="start" class="com.demo.listener.MyExecutorListener"></flowable:executionListener>
</extensionElements>
<conditionExpression xsi:type="tFormalExpression"><![CDATA[${applyDay>1}]]></conditionExpression>
</sequenceFlow>
</process>
<bpmndi:BPMNDiagram id="BPMNDiagram_RequestLeaveApply2">
<bpmndi:BPMNPlane bpmnElement="RequestLeaveApply2" id="BPMNPlane_RequestLeaveApply2">
<bpmndi:BPMNShape bpmnElement="start" id="BPMNShape_start">
<omgdc:Bounds height="30.0" width="30.0" x="120.0" y="163.0"></omgdc:Bounds>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape bpmnElement="initer" id="BPMNShape_initer">
<omgdc:Bounds height="80.0" width="100.0" x="225.0" y="138.0"></omgdc:Bounds>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape bpmnElement="deptPass" id="BPMNShape_deptPass">
<omgdc:Bounds height="80.0" width="100.0" x="435.0" y="138.0"></omgdc:Bounds>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape bpmnElement="judgeDay" id="BPMNShape_judgeDay">
<omgdc:Bounds height="40.0" width="40.0" x="660.0" y="158.0"></omgdc:Bounds>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape bpmnElement="leaderPass" id="BPMNShape_leaderPass">
<omgdc:Bounds height="80.0" width="100.0" x="630.0" y="300.0"></omgdc:Bounds>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape bpmnElement="end" id="BPMNShape_end">
<omgdc:Bounds height="28.0" width="28.0" x="830.0" y="164.0"></omgdc:Bounds>
</bpmndi:BPMNShape>
<bpmndi:BPMNEdge bpmnElement="judgeDayLess" id="BPMNEdge_judgeDayLess" flowable:sourceDockerX="20.5" flowable:sourceDockerY="20.5" flowable:targetDockerX="14.0" flowable:targetDockerY="14.0">
<omgdi:waypoint x="699.5022838749192" y="178.441717791411"></omgdi:waypoint>
<omgdi:waypoint x="830.0000626357853" y="178.0426605073493"></omgdi:waypoint>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge bpmnElement="deptPassTrue" id="BPMNEdge_deptPassTrue" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="20.5" flowable:targetDockerY="20.5">
<omgdi:waypoint x="534.95" y="178.12774936061385"></omgdi:waypoint>
<omgdi:waypoint x="660.448717948718" y="178.44871794871796"></omgdi:waypoint>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge bpmnElement="submit" id="BPMNEdge_submit" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
<omgdi:waypoint x="324.94999999995036" y="178.0"></omgdi:waypoint>
<omgdi:waypoint x="434.99999999999704" y="178.0"></omgdi:waypoint>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge bpmnElement="judgeDayThan" id="BPMNEdge_judgeDayThan" flowable:sourceDockerX="20.5" flowable:sourceDockerY="20.5" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
<omgdi:waypoint x="680.4409937888199" y="197.50293296089387"></omgdi:waypoint>
<omgdi:waypoint x="680.1236842105263" y="300.0"></omgdi:waypoint>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge bpmnElement="startLine" id="BPMNEdge_startLine" flowable:sourceDockerX="15.0" flowable:sourceDockerY="15.0" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
<omgdi:waypoint x="149.9499990675947" y="178.0"></omgdi:waypoint>
<omgdi:waypoint x="224.99999999996822" y="178.0"></omgdi:waypoint>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge bpmnElement="leaderPassTrue" id="BPMNEdge_leaderPassTrue" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="14.0" flowable:targetDockerY="14.0">
<omgdi:waypoint x="729.9499999999999" y="340.0"></omgdi:waypoint>
<omgdi:waypoint x="844.0" y="340.0"></omgdi:waypoint>
<omgdi:waypoint x="844.0" y="191.94992670393867"></omgdi:waypoint>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge bpmnElement="leaderPassFalse" id="BPMNEdge_leaderPassFalse" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
<omgdi:waypoint x="629.9999999999889" y="340.0"></omgdi:waypoint>
<omgdi:waypoint x="275.0" y="340.0"></omgdi:waypoint>
<omgdi:waypoint x="275.0" y="217.95000000000002"></omgdi:waypoint>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge bpmnElement="deptPassFalse" id="BPMNEdge_deptPassFalse" flowable:sourceDockerX="50.0" flowable:sourceDockerY="1.0" flowable:targetDockerX="50.0" flowable:targetDockerY="1.0">
<omgdi:waypoint x="485.0" y="138.0"></omgdi:waypoint>
<omgdi:waypoint x="485.0" y="50.0"></omgdi:waypoint>
<omgdi:waypoint x="275.0" y="50.0"></omgdi:waypoint>
<omgdi:waypoint x="275.0" y="138.0"></omgdi:waypoint>
</bpmndi:BPMNEdge>
</bpmndi:BPMNPlane>
</bpmndi:BPMNDiagram>
</definitions>测试方法实现

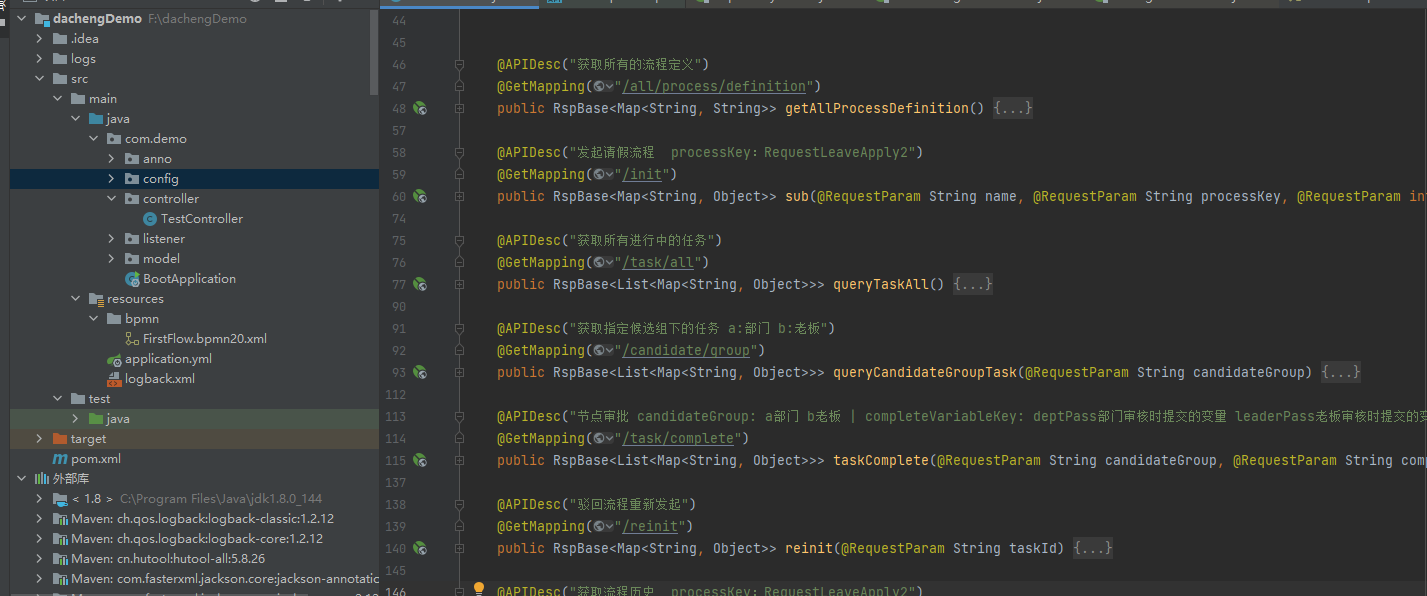

1.获取所有的流程定义
@APIDesc("获取所有的流程定义")
@GetMapping("/all/process/definition")
public RspBase<Map<String, String>> getAllProcessDefinition() {
Map<String, String> respData = new HashMap<>();
List<ProcessDefinition> processDefinitions = repositoryService.createProcessDefinitionQuery().orderByProcessDefinitionKey().asc().list();
for (ProcessDefinition processDefinition : processDefinitions) {
respData.put(processDefinition.getKey(), processDefinition.getName());
}
return new RspBase<Map<String, String>>().setCode(200).setMsg("获取定义成功").setData(respData);
}2.发起流程
@APIDesc("发起请假流程 processKey：RequestLeaveApply")
@GetMapping("/init")
public RspBase<Map<String, Object>> sub(@RequestParam String name, @RequestParam String processKey, @RequestParam int applyDay) {
// 员工提交请假申请
Map<String, Object> map = new HashMap<>();
map.put("applyDay", applyDay);
map.put("initRequest", name);
// leave为员工请假流程xml文件中的id
ProcessInstance a1 = runtimeService.startProcessInstanceByKey(processKey, map);
Task task = taskService.createTaskQuery().processInstanceId(a1.getId()).singleResult();
taskService.complete(task.getId());
return new RspBase<Map<String, Object>>().setCode(200).setMsg("发起成功").setData(task.getProcessVariables());
}3.获取所有进行中的任务
@APIDesc("获取所有进行中的任务")
@GetMapping("/task/all")
public RspBase<List<Map<String, Object>>> queryTaskAll() {
List<Task> list = taskService.createTaskQuery().orderByTaskCreateTime().asc().list();
List<Map<String, Object>> taskMap = new ArrayList<>();
for (Task task : list) {
// 根据任务id查询当前任务参数
Map<String, Object> variables = taskService.getVariables(task.getId());
variables.put("_TaskName", task.getName());
variables.put("_TaskID", task.getId());
variables.put("_TaskAssignee", task.getAssignee());
taskMap.add(variables);
}
return new RspBase<List<Map<String, Object>>>().setCode(200).setMsg("查询成功").setData(taskMap);
}4.获取指定候选组下的任务
@APIDesc("获取指定候选组下的任务 a:部门 b:老板")
@GetMapping("/candidate/group")
public RspBase<List<Map<String, Object>>> queryCandidateGroupTask(@RequestParam String candidateGroup) {
// 查询领导分组的任务
List<Task> teacher = taskService.createTaskQuery().taskCandidateGroup(candidateGroup).orderByTaskCreateTime().asc().list();
List<Map<String, Object>> taskMap = new ArrayList<>();
for (Task task : teacher) {
// 根据任务id查询当前任务参数
Map<String, Object> variables = taskService.getVariables(task.getId());
variables.put("_TaskName", task.getName());
variables.put("_TaskID", task.getId());
variables.put("_TaskAssignee", task.getAssignee());
taskMap.add(variables);
}
return new RspBase<List<Map<String, Object>>>().setCode(200).setMsg("查询成功").setData(taskMap);
}5.节点审批
@APIDesc("节点审批 candidateGroup: a部门 b老板 | completeVariableKey: deptPass部门审核时提交的变量 leaderPass老板审核时提交的变量 | value：true通过 false驳回")
@GetMapping("/task/complete")
public RspBase<List<Map<String, Object>>> taskComplete(@RequestParam String candidateGroup, @RequestParam String completeVariableKey, @RequestParam boolean value) {
// 领导审批
List<Task> teacherTaskList = taskService.createTaskQuery().taskCandidateGroup(candidateGroup).list();
Map<String, Object> teacherMap = new HashMap<>();
teacherMap.put(completeVariableKey, value);
List<Map<String, Object>> taskMap = new ArrayList<>();
for (Task teacherTask : teacherTaskList) {
taskService.complete(teacherTask.getId(), teacherMap);
Map<String, Object> taskInfo = new HashMap<>();
taskInfo.put("_TaskName", teacherTask.getName());
taskInfo.put("_TaskID", teacherTask.getId());
taskInfo.put("_TaskAssignee", teacherTask.getAssignee());
taskInfo.putAll(teacherTask.getProcessVariables());
taskMap.add(taskInfo);
}
return new RspBase<List<Map<String, Object>>>().setCode(200).setMsg("节点审批成功").setData(taskMap);
}6.驳回流程重新发起
@APIDesc("驳回流程重新发起")
@GetMapping("/reinit")
public RspBase<Map<String, Object>> reinit(@RequestParam String taskId) {
Task task = taskService.createTaskQuery().taskId(taskId).singleResult();
taskService.complete(task.getId());
return new RspBase<Map<String, Object>>().setCode(200).setMsg("驳回流程重新发起成功").setData(task.getProcessVariables());
}7.获取流程历史
@APIDesc("获取流程历史 processKey：RequestLeaveApply")
@GetMapping("/query/history")
public RspBase<Map<String, List<Map<String, String>>>> queryHistory(@RequestParam String processKey) {
Map<String, List<Map<String, String>>> respData = new HashMap<>();
List<ProcessInstance> processInstance = runtimeService.createProcessInstanceQuery()
.processDefinitionKey(processKey)
.orderByStartTime()
.desc()
.list();
if (CollectionUtils.isEmpty(processInstance)) {
return new RspBase<Map<String, List<Map<String, String>>>>().setCode(200).setMsg("无历史流程").setData(respData);
}
int i = 1;
for (ProcessInstance instance : processInstance) {
// 获取最近的一个流程
List<HistoricActivityInstance> activities = historyService.createHistoricActivityInstanceQuery()
// 只查询已经完成的活动,按照结束时间排序
.processInstanceId(instance.getId())
.finished()
.orderByHistoricActivityInstanceEndTime()
.desc()
// .orderByHistoricActivityInstanceStartTime()
// .asc()
.list();
List<Map<String, String>> activitiesData = activities.stream().map(a -> {
Map<String, String> data = new HashMap<>();
data.put("活动名称", a.getActivityName());
data.put("活动执行时间(毫秒)", a.getDurationInMillis() + "");
return data;
}).collect(Collectors.toList());
String name = instance.getProcessDefinitionName() + "(" + instance.getProcessDefinitionKey() + ")" + i;
respData.put(name, activitiesData);
i++;
}
return new RspBase<Map<String, List<Map<String, String>>>>().setCode(200).setMsg("获取流程历史成功").setData(respData);
}8.动态发布流程
@APIDesc("动态发布流程")
@PostMapping("/dynamic/deploy/process")
public RspBase<Map<String, Object>> dynamicDeployProcess(@RequestPart MultipartFile file) throws IOException {
Deployment deployment = repositoryService.createDeployment()
.addInputStream(file.getOriginalFilename(), file.getInputStream())
.deploy();
Map<String, Object> map = new HashMap<>();
map.put("deploymentId", deployment.getId());
map.put("deploymentName", deployment.getName());
map.put("deploymentKey", deployment.getKey());
return new RspBase<Map<String, Object>>().setCode(200).setMsg("动态发布流程成功").setData(map);
}9.删除流程
@APIDesc("删除流程")
@GetMapping("/dynamic/delete/process")
public RspBase<Map<String, Object>> dynamicDeployProcess(@RequestParam String processKey) {
repositoryService.deleteDeployment(processKey, true);
return new RspBase<Map<String, Object>>().setCode(200).setMsg("删除流程成功").setData(null);
}作者：yuanfun 创建时间：2025-01-08 16:14
最后编辑：yuanfun 更新时间：2025-01-16 13:51
最后编辑：yuanfun 更新时间：2025-01-16 13:51
