创建流程图

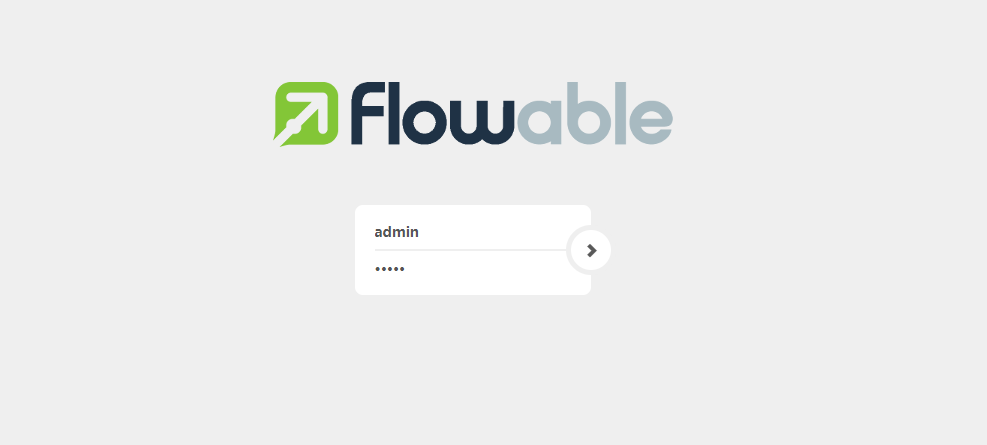

使用账号登录

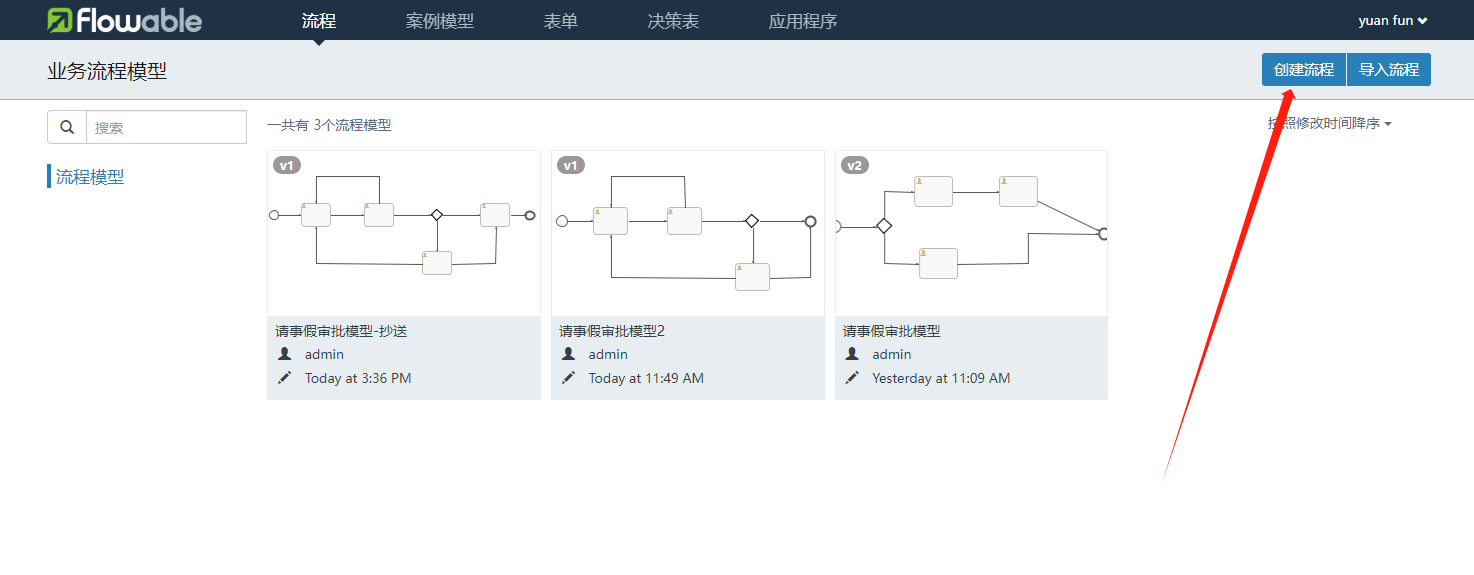

创建新流程

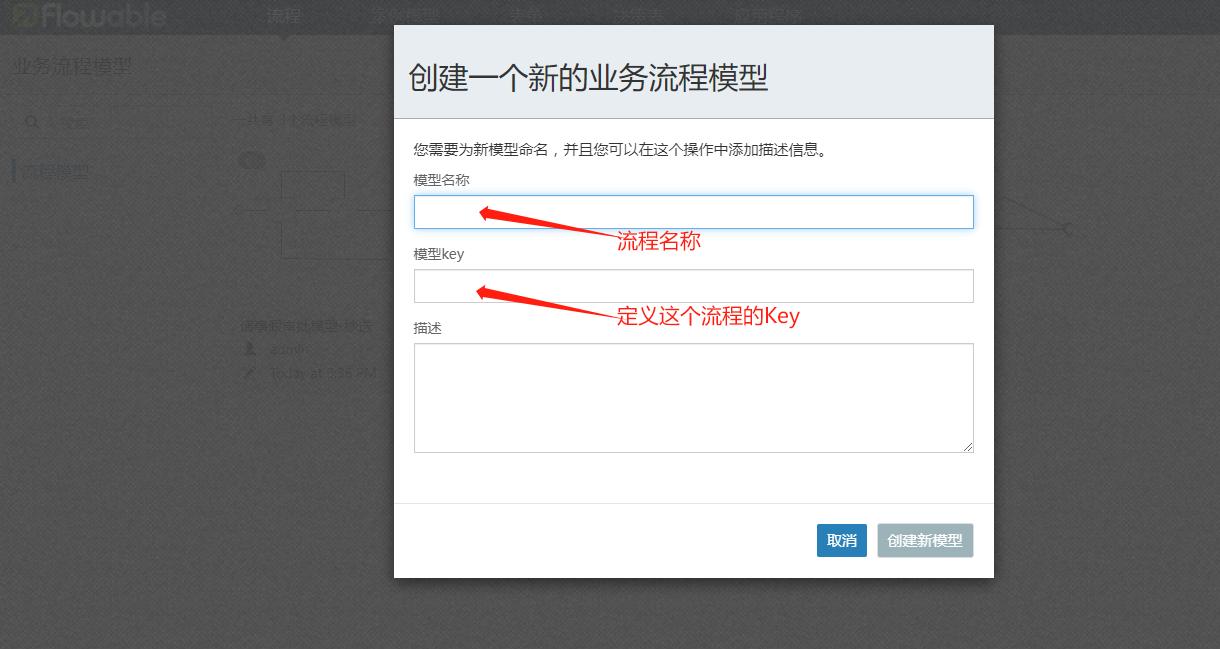

定义流程名与Key

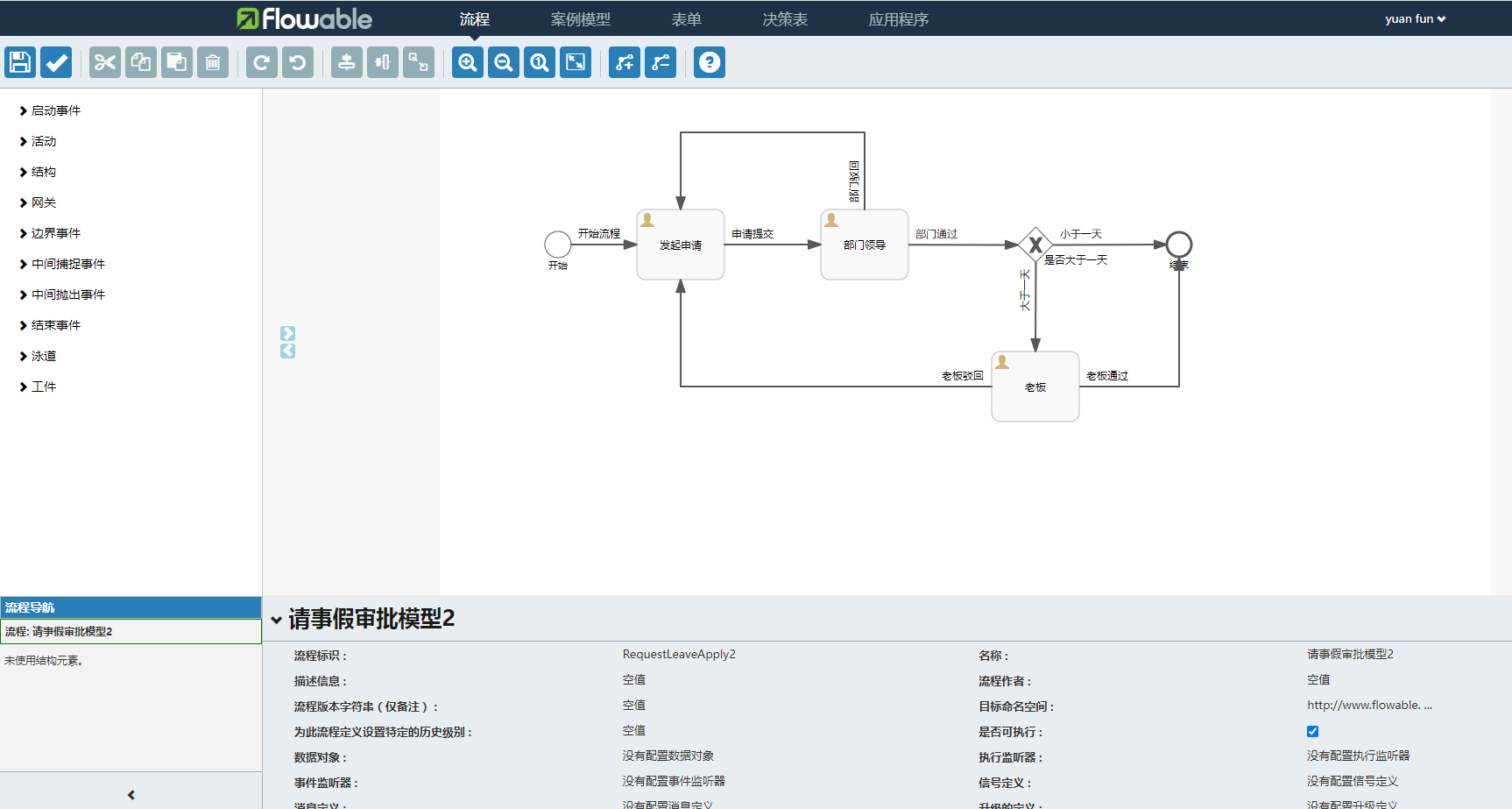

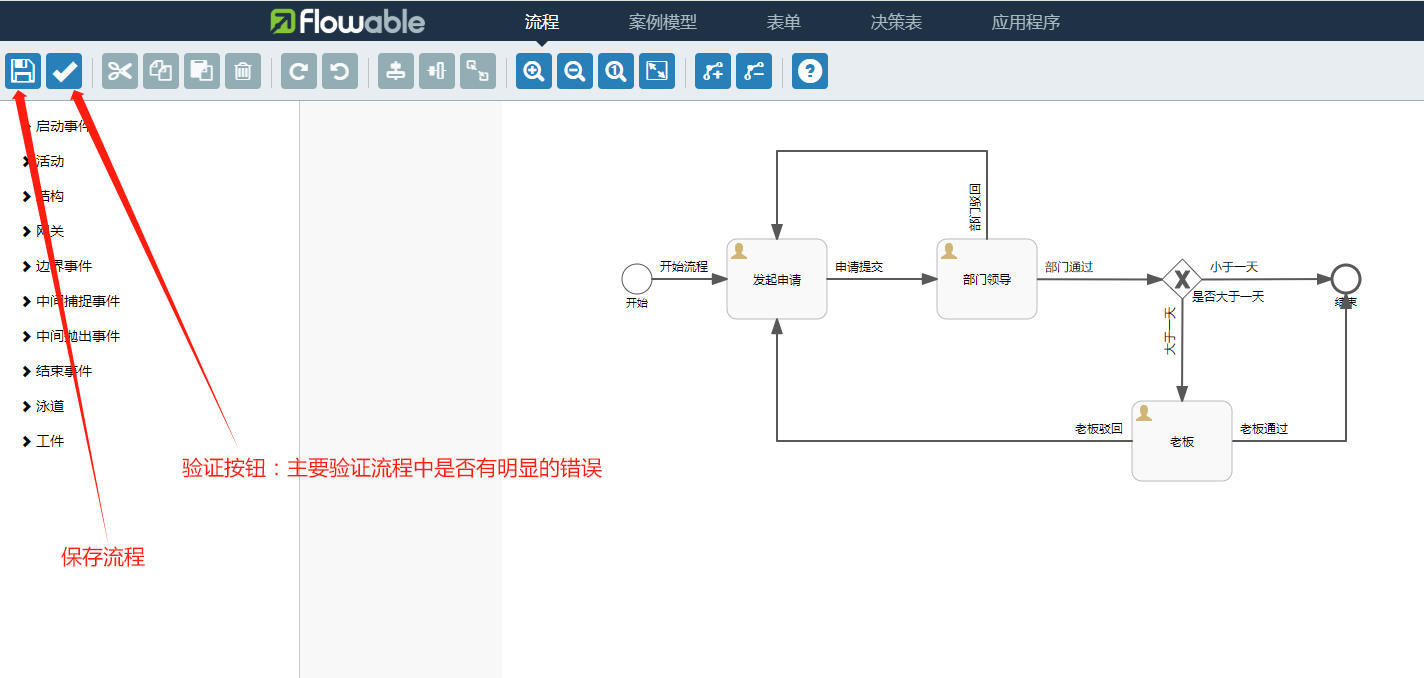

目标效果

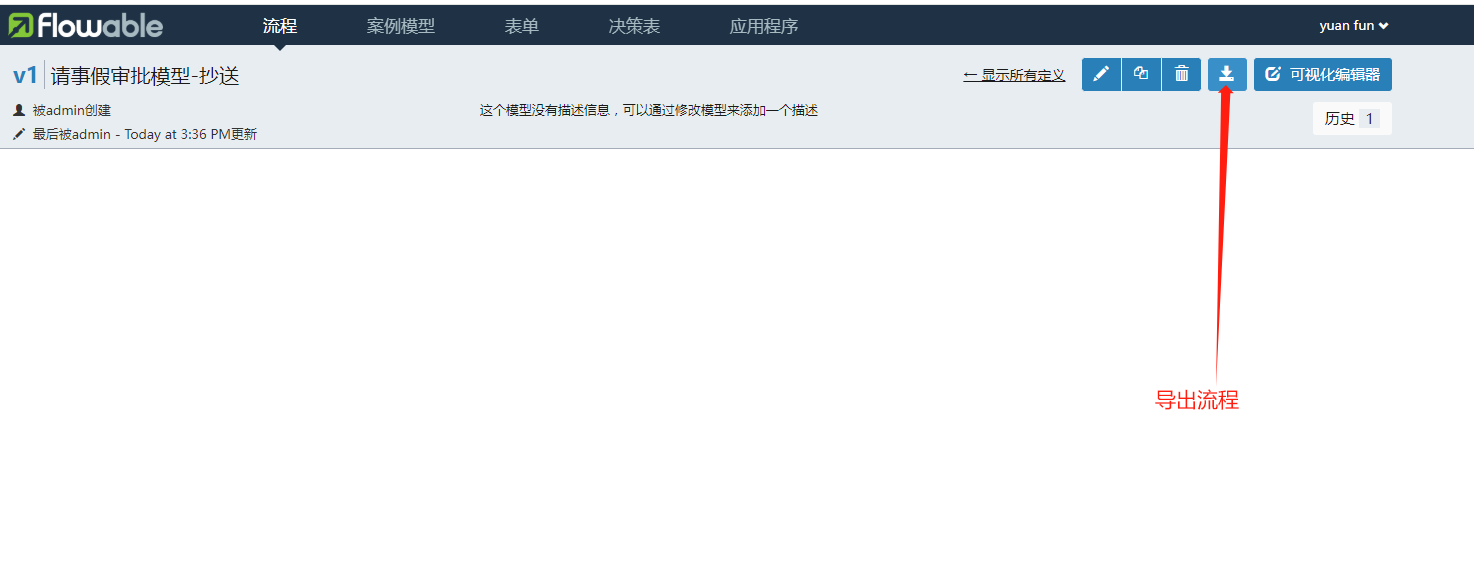

导出流程

目标流程文件

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xmlns:xsd="http://www.w3.org/2001/XMLSchema"
             xmlns:flowable="http://flowable.org/bpmn"
             xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
             xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC"
             xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"
             typeLanguage="http://www.w3.org/2001/XMLSchema"
             expressionLanguage="http://www.w3.org/1999/XPath"
             targetNamespace="http://www.flowable.org/processdef"
             exporter="Flowable Open Source Modeler" exporterVersion="6.7.2">
    <process id="RequestLeaveApply2" name="请事假审批模型2" isExecutable="true">
        <startEvent id="start" name="开始" flowable:formFieldValidation="true"></startEvent>
        <userTask id="initer" name="发起申请" flowable:assignee="${initRequest}" flowable:formFieldValidation="true">
            <extensionElements>
                <modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete>
            </extensionElements>
        </userTask>
        <userTask id="deptPass" name="部门领导" flowable:candidateGroups="a" flowable:formFieldValidation="true"></userTask>
        <exclusiveGateway id="judgeDay" name="是否大于一天"></exclusiveGateway>
        <userTask id="leaderPass" name="老板" flowable:candidateGroups="b" flowable:formFieldValidation="true"></userTask>
        <endEvent id="end" name="结束"></endEvent>
        <sequenceFlow id="judgeDayLess" name="小于一天" sourceRef="judgeDay" targetRef="end">
            <conditionExpression xsi:type="tFormalExpression"><![CDATA[${applyDay<=1}]]></conditionExpression>
        </sequenceFlow>
        <sequenceFlow id="deptPassTrue" name="部门通过" sourceRef="deptPass" targetRef="judgeDay">
            <conditionExpression xsi:type="tFormalExpression"><![CDATA[${deptPass==true}]]></conditionExpression>
        </sequenceFlow>
        <sequenceFlow id="startLine" name="开始流程" sourceRef="start" targetRef="initer"></sequenceFlow>
        <sequenceFlow id="submit" name="申请提交" sourceRef="initer" targetRef="deptPass"></sequenceFlow>
        <sequenceFlow id="deptPassFalse" name="部门驳回" sourceRef="deptPass" targetRef="initer">
            <conditionExpression xsi:type="tFormalExpression"><![CDATA[${deptPass==false}]]></conditionExpression>
        </sequenceFlow>
        <sequenceFlow id="leaderPassFalse" name="老板驳回" sourceRef="leaderPass" targetRef="initer">
            <conditionExpression xsi:type="tFormalExpression"><![CDATA[${leaderPass==false}]]></conditionExpression>
        </sequenceFlow>
        <sequenceFlow id="leaderPassTrue" name="老板通过" sourceRef="leaderPass" targetRef="end">
            <conditionExpression xsi:type="tFormalExpression"><![CDATA[${leaderPass==true}]]></conditionExpression>
        </sequenceFlow>
        <sequenceFlow id="judgeDayThan" name="大于一天" sourceRef="judgeDay" targetRef="leaderPass">
            <extensionElements>
                <flowable:executionListener event="start" class="com.demo.listener.MyExecutorListener"></flowable:executionListener>
            </extensionElements>
            <conditionExpression xsi:type="tFormalExpression"><![CDATA[${applyDay>1}]]></conditionExpression>
        </sequenceFlow>
    </process>
    <bpmndi:BPMNDiagram id="BPMNDiagram_RequestLeaveApply2">
        <bpmndi:BPMNPlane bpmnElement="RequestLeaveApply2" id="BPMNPlane_RequestLeaveApply2">
            <bpmndi:BPMNShape bpmnElement="start" id="BPMNShape_start">
                <omgdc:Bounds height="30.0" width="30.0" x="120.0" y="163.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="initer" id="BPMNShape_initer">
                <omgdc:Bounds height="80.0" width="100.0" x="225.0" y="138.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="deptPass" id="BPMNShape_deptPass">
                <omgdc:Bounds height="80.0" width="100.0" x="435.0" y="138.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="judgeDay" id="BPMNShape_judgeDay">
                <omgdc:Bounds height="40.0" width="40.0" x="660.0" y="158.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="leaderPass" id="BPMNShape_leaderPass">
                <omgdc:Bounds height="80.0" width="100.0" x="630.0" y="300.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="end" id="BPMNShape_end">
                <omgdc:Bounds height="28.0" width="28.0" x="830.0" y="164.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNEdge bpmnElement="judgeDayLess" id="BPMNEdge_judgeDayLess" flowable:sourceDockerX="20.5" flowable:sourceDockerY="20.5" flowable:targetDockerX="14.0" flowable:targetDockerY="14.0">
                <omgdi:waypoint x="699.5022838749192" y="178.441717791411"></omgdi:waypoint>
                <omgdi:waypoint x="830.0000626357853" y="178.0426605073493"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="deptPassTrue" id="BPMNEdge_deptPassTrue" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="20.5" flowable:targetDockerY="20.5">
                <omgdi:waypoint x="534.95" y="178.12774936061385"></omgdi:waypoint>
                <omgdi:waypoint x="660.448717948718" y="178.44871794871796"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="submit" id="BPMNEdge_submit" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
                <omgdi:waypoint x="324.94999999995036" y="178.0"></omgdi:waypoint>
                <omgdi:waypoint x="434.99999999999704" y="178.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="judgeDayThan" id="BPMNEdge_judgeDayThan" flowable:sourceDockerX="20.5" flowable:sourceDockerY="20.5" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
                <omgdi:waypoint x="680.4409937888199" y="197.50293296089387"></omgdi:waypoint>
                <omgdi:waypoint x="680.1236842105263" y="300.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="startLine" id="BPMNEdge_startLine" flowable:sourceDockerX="15.0" flowable:sourceDockerY="15.0" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
                <omgdi:waypoint x="149.9499990675947" y="178.0"></omgdi:waypoint>
                <omgdi:waypoint x="224.99999999996822" y="178.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="leaderPassTrue" id="BPMNEdge_leaderPassTrue" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="14.0" flowable:targetDockerY="14.0">
                <omgdi:waypoint x="729.9499999999999" y="340.0"></omgdi:waypoint>
                <omgdi:waypoint x="844.0" y="340.0"></omgdi:waypoint>
                <omgdi:waypoint x="844.0" y="191.94992670393867"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="leaderPassFalse" id="BPMNEdge_leaderPassFalse" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
                <omgdi:waypoint x="629.9999999999889" y="340.0"></omgdi:waypoint>
                <omgdi:waypoint x="275.0" y="340.0"></omgdi:waypoint>
                <omgdi:waypoint x="275.0" y="217.95000000000002"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="deptPassFalse" id="BPMNEdge_deptPassFalse" flowable:sourceDockerX="50.0" flowable:sourceDockerY="1.0" flowable:targetDockerX="50.0" flowable:targetDockerY="1.0">
                <omgdi:waypoint x="485.0" y="138.0"></omgdi:waypoint>
                <omgdi:waypoint x="485.0" y="50.0"></omgdi:waypoint>
                <omgdi:waypoint x="275.0" y="50.0"></omgdi:waypoint>
                <omgdi:waypoint x="275.0" y="138.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
        </bpmndi:BPMNPlane>
    </bpmndi:BPMNDiagram>
</definitions>
